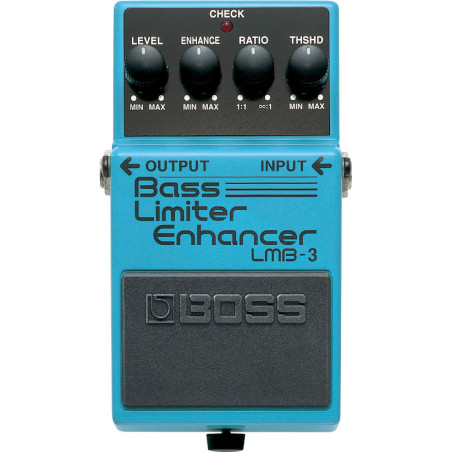

Boss LMB-3 Bass Limiter Enhancer

• Giver fuld kontrol over bassens dynamikområde med parametrene Ratio og Threshold
• Enhancer funktion giver baslyd med forøget klarhed og nærvær
• Fungerer med strømforsyning eller 9 volts batteri

Specs

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
THSHD knob
RATIO knob
ENHANCE knob
LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
25 mA

Expected battery life under continuous use
Carbon: Approx. 5 hours
Alkaline: Approx. 10.5 hours
* These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series



Size and Weight

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight (including battery)
380 g
14 oz
