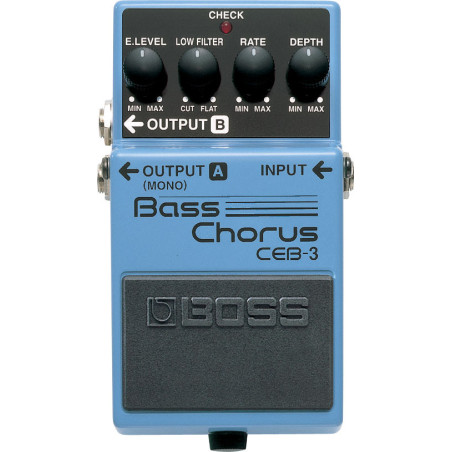

Boss CEB-3, bass chorus

• Kompakt choruspedal specielt udviklet til bas
• Giver de høje frekvenser choruslyd uden at påvirke de lave frekvenser
• Drejeknapperne Effect Level, Low Filter, Rate og Depth giver præcis kontrol over lyden

Nominal Input Level
-20 dBu

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
DEPTH (Modulation depth) knob
RATE (Modulation rate) knob
LOW FILTER knob
E.LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
55 mA

Expected battery life under continuous use
Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)



Size and Weight

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight(including battery)
420 g
15 oz
